Shared Libraries (Shared Objects)¶

Problems With Static Libraries ¶

Only origanizational measure
- ⟶ Copy of the code exists in every executable that links against the library
- ⟶ Size of executable larger than necessary
- Convenience operation: linker can look into an archive, and pick things out accordingly
Maintainability
- A fix in the library requires relinking all users
- ⟶ no central update of code

And Dynamic Libraries?¶

C Library is always linked dynamically for those reasons

What does an executable need?

$ readelf --dynamic hello-first

Dynamic section at offset 0x2e20 contains 24 entries:
  Tag        Type                         Name/Value
 0x0000000000000001 (NEEDED)             Shared library: [libc.so.6]
 ...

Where would libc.so be found once I ran the program?

$ ldd hello-first
   linux-vdso.so.1 (0x00007fffe9fa7000)
   libc.so.6 => /lib64/libc.so.6 (0x00007f75ca289000)
   /lib64/ld-linux-x86-64.so.2 (0x00007f75ca46d000)

Relocations ¶

Loader composes address space
Finds shared libraries that the executable depends on
Loads them into process’s memory/address space
⟶ at different positions
- Different executables depend on different libraries
- Security: what if an attacker knew the absolute positions of executable code?

Building A Shared Library: Position Independent Code (PIC)¶

Shared libraries are not archives

⟶ Linked ⟶ gcc

$ gcc -shared -o libgreet.so hello.o hello-flexible.o

But … 🤨

$ gcc -shared -o libgreet.so hello.o hello-flexible.o
/usr/bin/ld: hello.o: relocation R_X86_64_32 against `.rodata' can not be used when making a shared object; recompile with -fPIC
/usr/bin/ld: hello-flexible.o: relocation R_X86_64_32 against `.rodata' can not be used when making a shared object; recompile with -fPIC
collect2: error: ld returned 1 exit status

Code needs to be prepared to be loaded at varying positions
⟶ Position independent code (PIC)

hello.o and hello-flexible.o require special treatment to go into a shared library

$ gcc -fPIC -c -o hello.o hello.c
$ gcc -fPIC -c -o hello-flexible.o hello-flexible.c

And finally …

$ gcc -shared -o libgreet.so hello.o hello-flexible.o

Linking Executables Against Shared Libraries ¶

This is relatively easy, as opposed to building shared libraries …

$ gcc -o hello-first hello-first.o libgreet.so

And Build Dependencies?¶

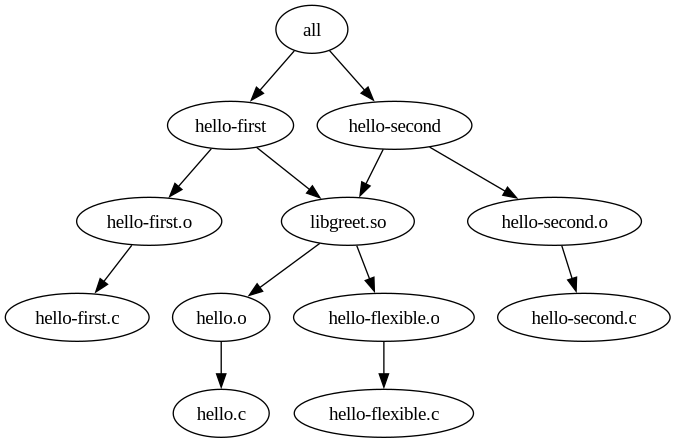

Graph and Makefile basically unchanged …

digraph foo {
"hello.o" -> "hello.c";
"hello-flexible.o" -> "hello-flexible.c";
"libgreet.so" -> "hello.o";
"libgreet.so" -> "hello-flexible.o";
"hello-first.o" -> "hello-first.c";
"hello-second.o" -> "hello-second.c";
"hello-first" -> "hello-first.o";
"hello-first" -> "libgreet.so";
"hello-second" -> "hello-second.o";
"hello-second" -> "libgreet.so";
"all" -> "hello-first";
"all" -> "hello-second";
}

../jfasch-home-linux-toolchain/shared-libraries/Makefile¶

.PHONY: all
all: hello-first hello-second

hello.o: hello.c
	gcc -fPIC -c -o hello.o hello.c

hello-flexible.o: hello-flexible.c
	gcc -fPIC  -c -o hello-flexible.o hello-flexible.c

libgreet.so: hello.o hello-flexible.o
	gcc -shared -o libgreet.so hello.o hello-flexible.o

hello-first.o: hello-first.c
	gcc -c -o hello-first.o hello-first.c

hello-second.o: hello-second.c
	gcc -c -o hello-second.o hello-second.c

hello-first: hello-first.o libgreet.so
	gcc -o hello-first hello-first.o libgreet.so

hello-second: hello-second.o libgreet.so
	gcc -o hello-second hello-second.o libgreet.so

And Runtime Dependencies?¶

Executable is not self-contained anymore. It needs …

$ readelf --dynamic hello-first

...
 Tag        Type                         Name/Value
0x0000000000000001 (NEEDED)             Shared library: [libgreet.so]
0x0000000000000001 (NEEDED)             Shared library: [libc.so.6]
...

Who has libgreet.so and libc.so.6?

$ readelf --dynamic libgreet.so

...
Tag        Type                         Name/Value
0x0000000000000001 (NEEDED)             Shared library: [libc.so.6]
...

⟶ Runtime dependencies

And Starting An Executable Having External Dependencies?¶

The loader …

Reads the executable (an ELF file)
Determines list of dependencies (shared libraries)
Searches for dependencies
Places them into the address space
Applies indirections ⟶ relocations

../../../../../../_images/hello-relocations.svg

This Is Not Simple: Library Search Path¶

$ ./hello-first
./hello-first: error while loading shared libraries: libgreet.so: cannot open shared object file: No such file or directory

Shared library search fails
Loader does not look in the current working directory (for security!)
⟶ LD_LIBRARY_PATH environment variable

$ LD_LIBRARY_PATH=$(pwd)
$ export LD_LIBRARY_PATH
$ ./hello-first
Hello World

Summary: Static Versus Dynamic Libraries ¶

Type	Pros	Cons
Static library	Easy to maintain Executable do not have external dependencies Versioning is not a problem	No single-file bug fix updates Needs more disk space and memory
Shared library	Single-file bug fix updates Saves disk space and memory Cool in production	Maintenance nightmare during development

⟶ in larger code bases

Build static libraries during development
Switch to shared libraries for release
